4. In Microsoft Word, Use Tables and Tabs to Arrange Text

Adapted from Shauna Kelly's page at https://shaunakelly.com/word/concepts/tables.html with permission.

Tutorial

We're creating the sample document and our next challenge is to position text on the page rather than just creating paragraphs of body text.

Use tables and tabs to arrange text, not the spacebar

This is the text we're trying to produce:

In the old days, on a typewriter, you would do this by setting two tabs.

You would tab once and type "Characters in the story". Then tab again to type "One fox, one dog.". If you used the space bar instead of the tab, it would make no difference to the final document.

Word does it completely differently. You can use tabs to set up text like this, but it would be awkward. Much easier to create a table.

What's a table got to do with positioning text?

When you hear "table" you're probably thinking of something that looks like this:

Yes, that's a table. But if we had only text in the table, and took out the borders, we could use a table to position our text on the page.

There are two huge advantages of arranging text in a table. The first is that it is really easy to change the widths of the columns, which will determine how far left or right our text is positioned on the page. The second is that text wraps within a cell of the table. You don't have to work out how much text will fit on one line, and how much should go to the next. Word will do that for you.

How to create a table to hold your text

Position the Insertion Point (or cursor) where you want the table. For our sample document, that will be in the paragraph below the heading "Information about this document".

In Ribbon versions of Word, click on the Insert tab and then on the Table button. (Figure 1)

Figure 1

You need two columns and three rows.

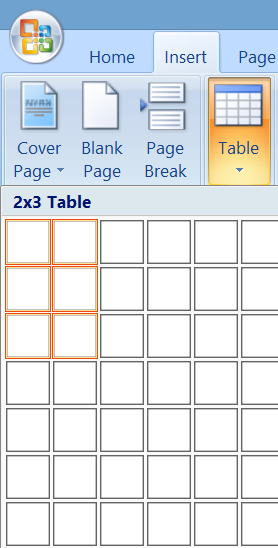

You can do this by picking 2 colums and three rows directly as shown in Figure 2 below.

Figure 2

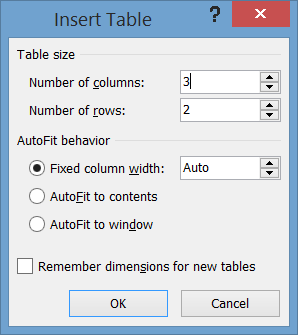

Or, below that, you can pick "Insert Table" to bring up the traditional dialog box shown in Figure 3 below.

Figure 3 - Insert Table dialog

If you use the dialog box, make sure that you have selected Fixed Column Width, and that it is set to Auto. This is because, for this purpose, we need to decide for ourselves how wide the columns will be.

Your new table: Borders and Gridlines

When you click in the bottom right corner of the grid, or, in the dialog box click OK, Word will insert your new table.

There are two kinds of lines you should see around the cells of tables. Some are borders (Figure 4). Borders are seen when you print the document. You can change the borders, their thickness, color and style. Or you can delete them.

Figure 4: A new table with borders

Figure 5: A new table without borders, but showing Gridlines. (Gridlines are visual on-screen guides that don't print.)

Other lines you will see are Gridlines (Figure 5). These are like the Text Boundaries that show you where your margins are. Gridlines don't print. Gridlines show you where the table is, so you know where to type your text. If you don't see any kind of lines in your table, with your insertion point in the table, choose the Table Tools Layout Tab and click on "View Gridlines." (This is on the left end of the Ribbon tab.)

Sometimes, when Word inserts a new table, the table will have borders around all the cells (it depends on what version of Word and how your machine is set up). Sometimes it won't have borders, but you will still be able to see the gridlines. Sometimes it will have neither. As you can see from these screenshots (Figures 4 and 5), it's sometimes difficult to tell which is which.

Your new table: What else can you notice?

There are several things to note here.

• There are two vertical columns, and three horizontal rows. Each box in the table is called a Cell.
• In each cell there's a sign like . It looks like a funny circle with spokes, like a star or a mis-shapen wheel. That's the end-of-table-cell marker. It is analogous to ¶, which is the end-of-paragraph marker. (If you don't see the , press the ¶ button on the Home tab.)
• By default, the table is positioned just left of the left margin, and stretches to just right of the right margin. Word's default puts the table on the page so that text in the left column of the table will line up with text outside a table.
• There is always a paragraph after a table. Even if the table is the last thing in the document, there will be a paragraph after it, and you can't delete that last paragraph mark.

How to format your table for this document

There are four things we need to do to this table:

• We have to add our text in the cells of the table.
• We have to apply the appropriate style to the cells of the table.
• We may need to get rid of the borders.
• We want our text to be indented from the left margin. So we'll have to move the table over to the right.

How to type text in your table

Click in a cell to type in that cell. Use Tab to move from one cell to the next. Complete your table so it looks something like the following.

(Note: If you are in the last cell of a table, and you press Tab, Word will automatically create a new row. If you do that accidentally, and you don't want it, press Ctrl+Z to undo the last action.)

How to apply the appropriate style to the text in the table

All of this text is Body Text. We can apply the style to the whole table at once.

To do that, click anywhere within the Table. Right-click and use Select > Table. You can also do this by using the Select menu on the left end of the Table Tools Layout tab. (Figure 6)

Figure 6 - from left end of Table Tools Layout tab

That will select (highlight) the whole table.

To apply the Body Text style, on the Home Tab pick the Body Text Style in the Gallery. (See the Addendum to the Concept 3 page if you don't see the Body Text Style.)

How to remove the border

Your table may have borders around it. If so, we need to remove them. To do that, click anywhere within the table. Right-click and from the context menu that pops up select Borders and Shading. Click the None box, and then OK.

You will still be able to see the gridlines, which are the guides to help you see where your table is so you can manipulate it.

How to move the table horizontally, and change the column widths

You can drag the vertical gridlines to change the horizontal position of the table, and to change the column widths.

Figure 7

Hover your mouse between columns.
When your mouse hits the sweet spot, the cursor changes to a double-headed arrow.
You can now click and drag left or right to change the width of the column.

Click once anywhere within your table. (Make sure no text is highlighted.) Hover your mouse over any of the vertical gridlines (the left of the table, the right of the table, or the one between the columns).

When you hit the sweet spot, the cursor will change to a double-headed arrow pointing left and right (Figure 7). When you see that, click and drag to the left or right.

You can use this to manipulate your table to get the columns just the way you want them.
